52ASC Aerobar Extensions 52° Aero Shaped Carbon 340mm

Product Code: ACASC52EXT340

Product Documents

RRP $599.00
Dealer Locator
Description
The 52 ASC takes advantage of the design scope offered by carbon fibre to offer a highly optimised shape The grip section is placed at an 87mm rise, 52º angle, then the body of the extension is swept up and outwards to hug the riders arm as closely as possible. The shape was optimised using CFD to minimise drag without sacrificing strength.

The front section (from the wrist fin forward) has been angled up by 9 degrees to give a 52 degree grip angle and comfortable wrist support.

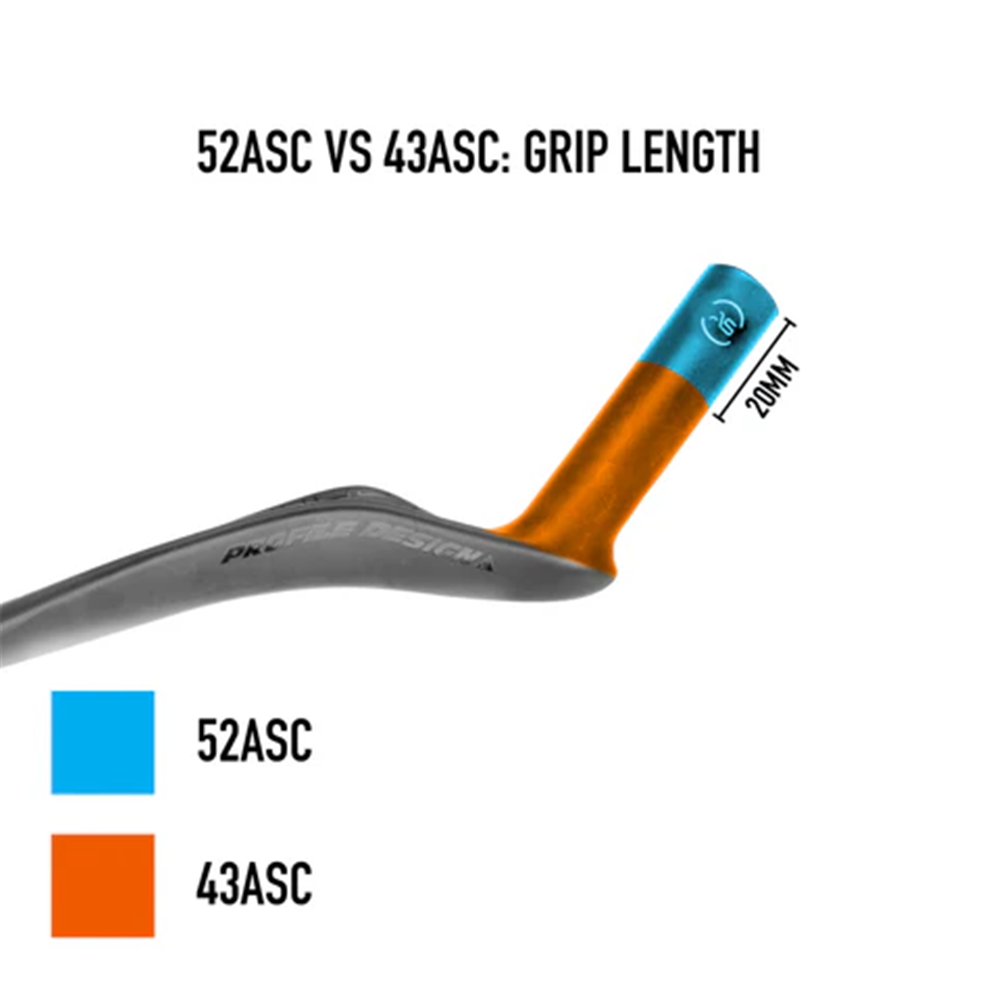

Additionally the grip has been lengthened by 20mm to provide more comfort for users of SRAM Blips. The grip can be trimmed to suit. The premise of the ASC range is to move the extension sideways to share its frontal aera with riders arm, while maintaining a 22.2mm mounting aera to be compatible with the majority of standard aerobars.

The 52 ASC will be a strong contender for the title of 'most comfortable aero extensions' at least for standard aerobar brackets.  The fit by the wrist area is designed to smooth airflow over the arm and to increase contact area which will provide some extra comfort and to give you more control over your bike. The shape was optimised using CFD to minimise drag without sacrificing strength.

Who is it for?
The 52 ASC is intended to optimize the aerodynamics of your existing bars but pairs exceptionally well with either the Race+ or Ergo+ armrest. Giving you the ideal supportive position which again will help you be relaxed while riding and as we mentioned… the key to speed is relaxation.  The extensions will fit in any aerobar that is designed for 22.2mm.  So can be used by any rider wishing to improve the comfort of their aerobar grips.

SPECIFICATIONS
+ Clamp Diameter: 22.2mm
+ Weight: 230g for the pair
+ Length: 340mm
+ Rise: 107mm
+ Offset: 16mm total
+ Min Length:290mm (from front of clamp)

The 52ASC is intended to optimise the aerodynamics of your existing bars and pairs well with our Plus Series armrests
